Applications

The hygienic design of the valve is widely used in the field of food processing.beverages, fruit juices, wine, biopharmaceutical and vary fiexible body combinations for example,L-Portor or T-Port can be interchangeable on-site inlet,outlet to be any combination of changes can guarantee dead angle,no retention.

Product Details

Technical Specifications

Size:1'-4",DN25-DN100

Material:1.4301/304,316L/1.4404

Gaskets:PTFE/TFM(FDA 177.1550)

Temperature:-20℃ to 150℃(Standard),-30℃-2009C(Option)

Pressure:10-3-bar(Depending on seal material and temperature)

Operating modes:manual,pneumatic,electric

Surface finishing:internal surface Ra0.6um,external surface sand blast.

Certificate:PED/97/2З/EC,ЗA,FDA

Control:process controller,valve positioning(see controller directory) C-TOP control unit.AS-1 Device Net bus communication terminal connection(options),position sensor PNP NPN(options)

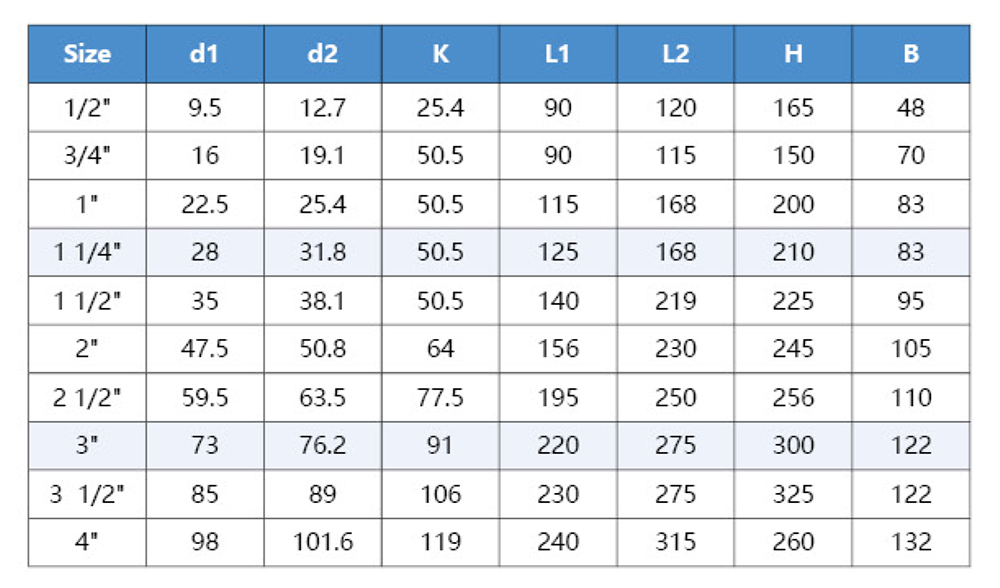

Pneumatic Square Ball Valve-2.jpg
