Standard Design Different standard of valve series can supply to customers, they are the DlN standard series,3A standard series, SMS standard series, ISO/lDF standard series, BS/RJIT standard series, ASME/BPE etc. The constitute elements of ball valve always included: one handle,one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal. The specification of ball valve series are welded ball valve, clamped ball valve, threaded ball valve etc. Working Principle Through 90 ° rotary handle, drive the ball body which have transfixion cavity and precise manufacture, to open or close the valve, reaching control the flow rate of medium. |  |
Design Features1. Body combination clamp connection 2. Without professional tools to remove the valve 3. Operating torque is small 4. Washer according to FDA177.2600 5. Connecting clamp welding thread, DIN.SMS.ISO.IDFBPE.RJT 6. No matter what kind of connection, the valve can be replaced without changing the total length of the valve | Product Features1. Valve stem anti-flying design 2. The connection between valve body and bonnet with positioning stage design 3. Circulation 4. No retention design 5. Stem seal packing with compensating device 6. Padlock device |
 | Technique Parameter All seal materil meet FDA177.2600 Working temperature: -20~+135°C(EPDM/PTFE) Sterilization temperature: 150°C(max.20min) Working pressure: 1.6Mpa(16bar) Medium: Water, drink, Milk, pharmacy etc connection method:3A/DIN/SMS/lSO(welding, clamp,thread,flange) Material Steel parts:SUS304,SUS316L Seal:EPDM,PTFE |

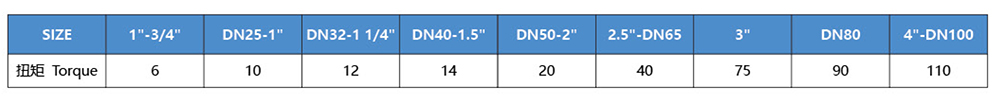

Operating Torque(N.M)
Note: the actuator proposed to increase the safety margin of 20%
