Three Piece Through Ball Valve

Standard Design

The opening and closing part of the three-piece all-envelop ball valve is a sphere. The ball rotates around the axis of the valve stem to open and close. The three-piece quick-loaded all-enveloped ball valve is mainly used to cut off the flow of medium in the pipeline.

The main features of the three-piece all-inclusive ball valve are reliable sealing, compact structure and easy operation and maintenance. In addition, the fluid resistance of the sanitary ball valve is the least, and its resistance coefficient is equal to the length of the pipe.

Three-piece ball valve with clamp is simple in structure, small in volume and light in weight, Good sealing, has been widely used in vacuum system. When connected to the pipe, use the prescribed torque cross-lock method

Product Details

Technical Specifications

Material: SUS304,SS316

Specification: DlN standard: DN15-DN100; lSO standard: 019(0.75s)-medium 108(4.25s)

Working principle: health clamp-type ball valve is the use of the ball around the axis of the valve stem rotation, to achieve the purpose of opening and closing. Sanitary clamp-on ball valve is mainly used to cut off the circulation of medium in the pipeline.

Connection form: thread, flange, welding, fast loading, etc

Application: used in all kinds of highly corrosive media and other industrial fields.

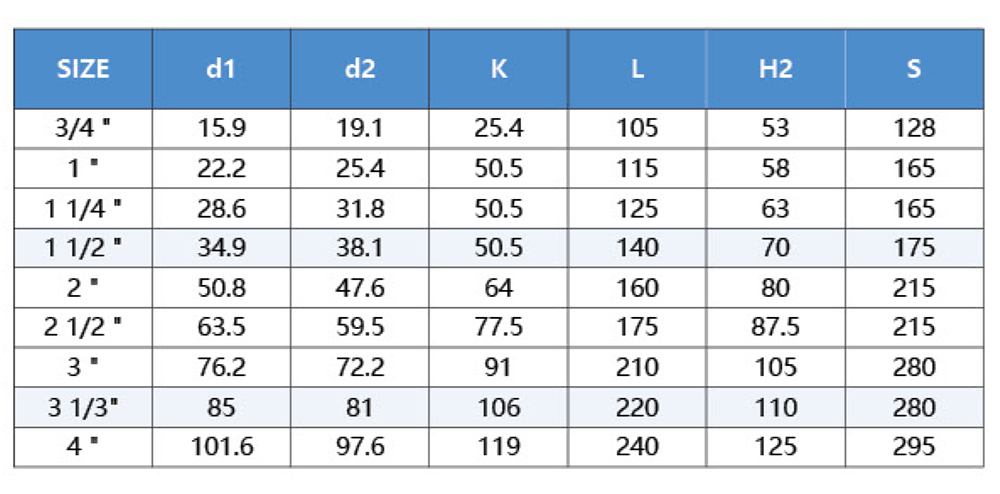

Three Piece Through Ball Valve-2.jpg
